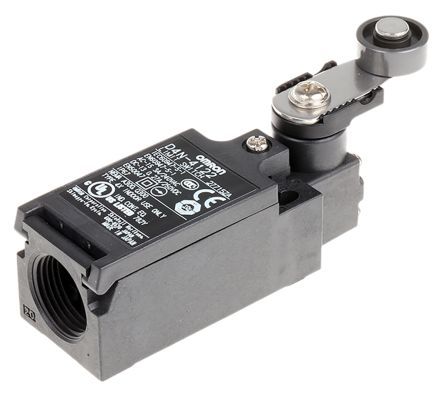

D4N Series, Miniature Safety Limit Switch, 10A, IP67

Stock Code:


The D4N series from Omron is a miniature safety limit switch with a plastic housing, two built-in contacts and a wide range of head and actuator types.

Direct opening mechanism
Various actuators
Double insulation
Standardized gold clad contacts provide high contact reliability
Can be used with both standard loads and micro loads
Free of lead, cadmium, and hexavalent chrome, reducing the burden on the environment
Conforms to EN115 and EN81-1

Actuator Type: Roller Lever
Actuator Included: Yes
Normal State Configuration: NO/NC
Action Type: Snap
Connection Type: Screw
Number of Contacts: 2
Size of Cable Entries: M20
Series: D4N
Dimensions: 64 x 31 x 45 mm
Depth: 45mm
Length: 64mm
Mechanical Life Minimum:15000000 cycles
Number of Conduit Entries: 1
Width: 31mm
