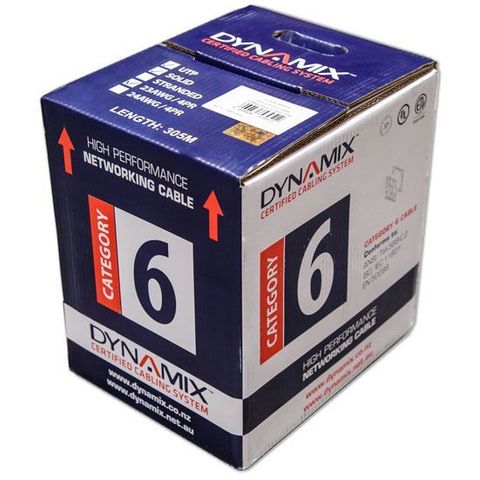

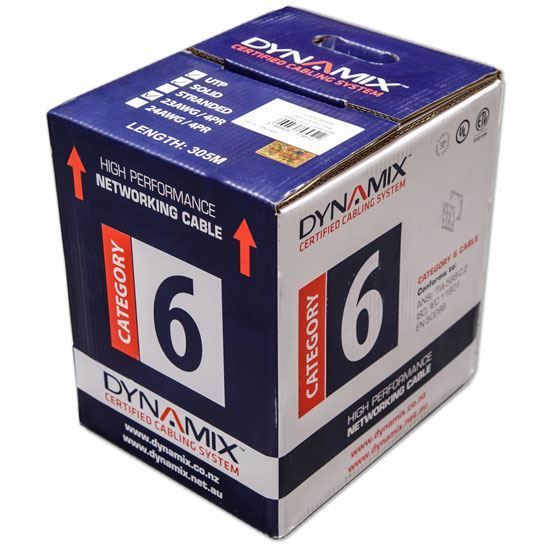

UTP CAT6 Blue SOLID CABLE ROLL (305m)
Stock Code:
C-C6-SLDBLUE
Description
Unshielded Twisted Pair (UTP) Cable is used to carry signals for computer networks (Ethernet Connections) with four-pole-twisted pairs. The cable complies with ANSI/TIA/EIA, ISO/IEC, and CENELEC EN. It is tested for flame retradancy as per IEC 60332-1-2.
It has several applications such as:
• 1000BASE-Tx Gigabit Ethernet
• 10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3)
• 100 VG - AnyLAN(IEEE802.12), 155/622 Mbps ATM
• 550 MHz Broadband Video
• Voice, T1, ISDN
Wire Diameter: 23AWG X 4 poles
Conductor Material: Solid Bare Copper
Insulation Material: HDPE
Sheath Material: PVC (Complies RoHS and CM (UL) rated)
Frequency: 1.0 - 250 MHz
Impedance: 100±15 Ohm
Color: Blue
Length: 305m
Conductor Material: Solid Bare Copper
Insulation Material: HDPE
Sheath Material: PVC (Complies RoHS and CM (UL) rated)
Frequency: 1.0 - 250 MHz
Impedance: 100±15 Ohm
Color: Blue
Length: 305m
