16MM 4C+E CIRCLE CABLE BLACK
Stock Code:
16MM5C

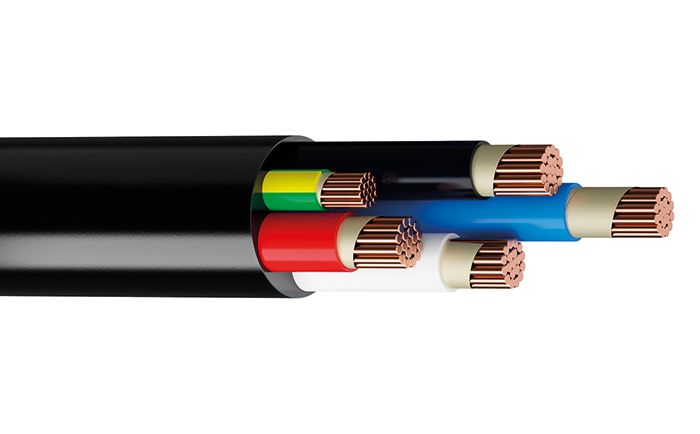

Description
Four core plus earth circular cable with V-90 insulation.
PVC sheathed complies with AS/NZS 5000 standard which was manufactured in accordance with PVC best practice guidelines.
It is suitable for fixed wiring installation for power circuits in domestic, commercial and industrial situations.
Conductor material: Copper
Outer sheath: PVC
Insulation: XLPE
Cores x Area (mm2): 4 x 16 + 6 E
Rated Voltage Uo/U: 0.6 / 1 KV
Max. conductor temperature in service: 75°C
Nom Diameter: 21.5 mm
Outer sheath: PVC
Insulation: XLPE
Cores x Area (mm2): 4 x 16 + 6 E
Rated Voltage Uo/U: 0.6 / 1 KV
Max. conductor temperature in service: 75°C
Nom Diameter: 21.5 mm
