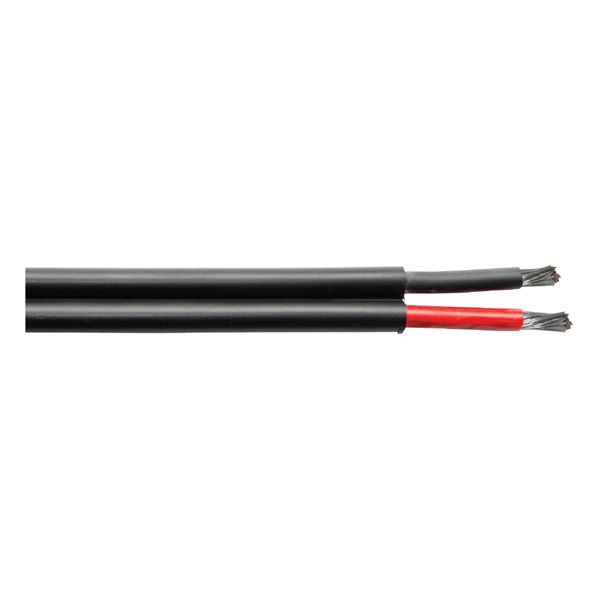

Solar Flex 4MM 2Core 100meter BLK+RED
Stock Code:
SOLAR2/4.0
Description
PRODUCT FEATURES:
Tinned fine stranded copper conductor
UV resistant
Environmentally friendly
Flame retardant
Heat, oil and chemical resistant (see Chemical Rating Chart)
CONSTRUCTION:
Conductor Annealed tinned copper stranded Class 5 for flexibility.
Insulation EBXL 120degree Compound.
Sheath EBXL 120degree Compound.
CHARACTERISTICS:
Operating Temperature Range -40 to 90 degree
Maximum Conductor Temperature 120degree
Rated Voltage Uo/U 1.0/1.5kV DC Voltage.
Minimum Bending Radius Fixed 4 x cable diameter / Flexing 6 x cable diameter.
Sheath Colour Black.
Standard Core Colours Black, Red.

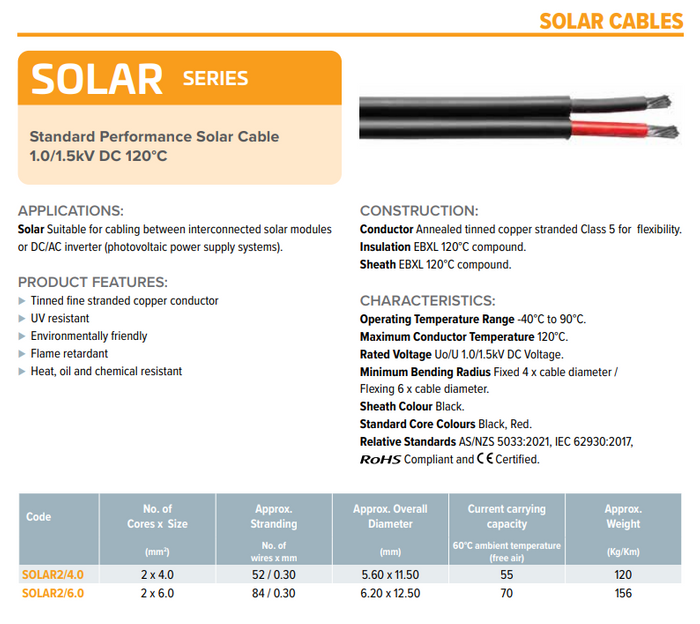

Standard Performance Solar Cable 1.0/1.5kV DC 120degree
2 x 4.0mm2
2 x 4.0mm2
