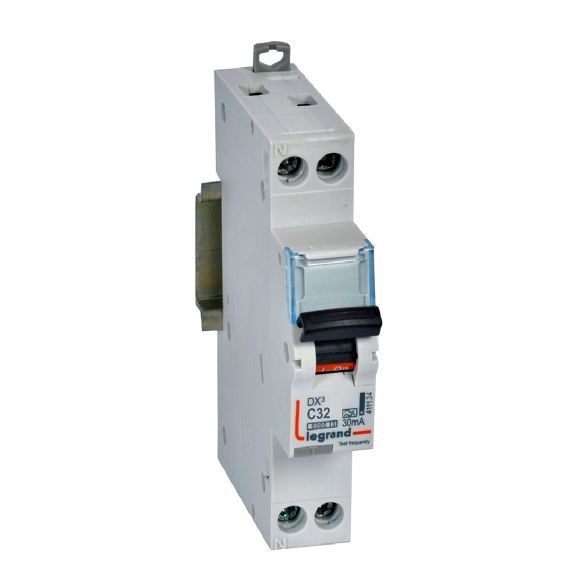

LEGRAND RCBO DX3 1P+N Type-A 30mA 230V32A

Stock Code:
RCBO411134

Description

Legrand Residual Current Circuit Breaker with Overload (RCBO) and positive contact indication for control. Gives protection against short circuits and overloads, and isolation of electrical circuits. It protects people from direct and indirect contact and protecting installations from insulation faults. Power supply either from the top or the bottom. This Din mounted combo RCD/MCB now comes in a compact 1 module size to save space in distribution boards on both residential and commercial installations.

Single module size (only 18mm wide)
Conform to IEC 61009-1
Compatible with prong-type supply busbars
Breaking capacity: 6000 - IEC 61009-1 - 6 kA / IEC 60947-2 for single pole + neutral
A type: detect AC and DC component faults
Enhanced immunity to unwanted tripping in disturbed environments
Can be equipped with DX³ signalling and remote tripping auxiliaries and motorised controls

for more product information, please click https://www.legrand.co.nz

DX3 RCBO 1P+N 32A 30mA 6kA (MCB/RCD combo) - A Type - C Curve
