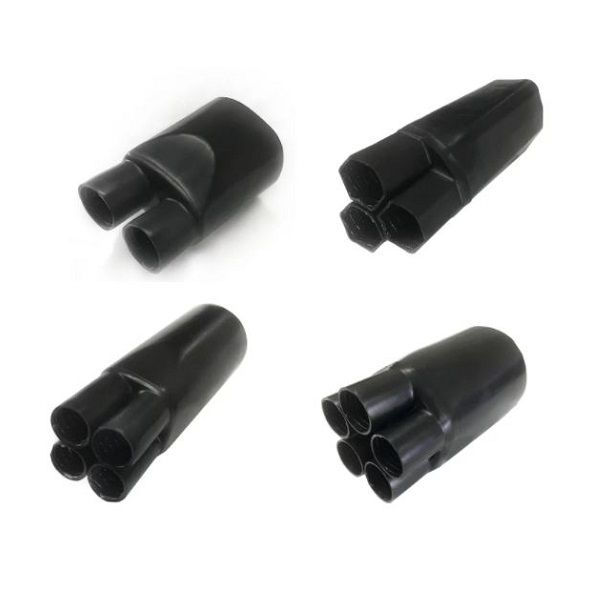

Cable Breakout Boot 4-35mm 2core

Stock Code:
OHBB 250

Description

Insulation and sealing over the crutch of multi-core cables. The hot melt adhesive provides a water tight environmental seal to the cable. The LV breakouts are used as an intergral part of cable terminations up to 1kV. Heat shrinkable low voltage breakouts whose dimension will shrink to a pre-determined size upon the application of heat above 125degree.

Finger: 2
Length: 90mm
Finger length: 20mm
Hot Melt: Poly-amid based hot melt adhesive
Up to 1KV
Body Shrinakble: 33mm+10mm
Finger Shrinkable: 14mm+3mm
