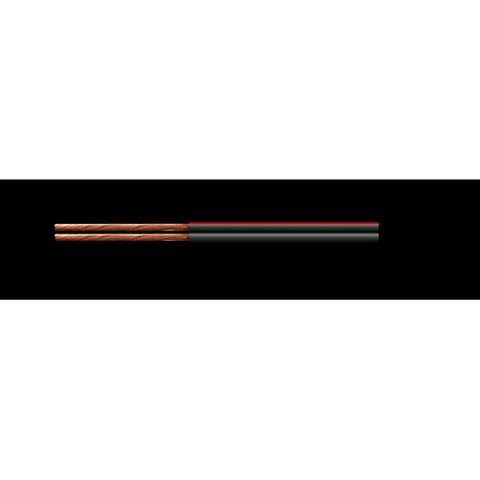

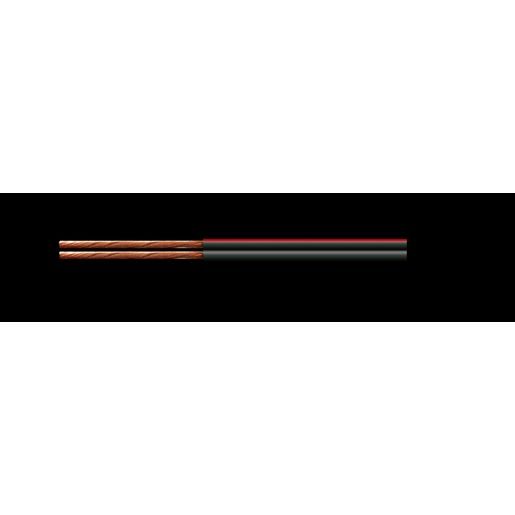

0.5mm Twin Speaker Flex Black and Red
Stock Code:
LFH21602
Description
2 Core Parallel Webbed (Figure 8) 16/.2 (0.50 mm sq). P.A.C.W.
FLEXIBLE P.V.C Insulated. Extra Low Voltage cable.
Not for mains connection.
CONDUCTOR : 16 strands of 0.2 mm Plain Annealed Copper to
AS1125 drawn from Class 110A copper to
AS1574.
Max. D.C. resistance at 20C : 39.0 ohms / klm
INSULATION : Coloured 75 C P.V.C.
Parallel Webbed (Figure 8)
Nominal Diameter : 2.0 x 4.5mm
Nom. Wall Thickness : 0.5 mm
POLARITY IDENTIFICATION
By permanent extruded stripe on one leg.
