25MM 1 CORE XLPE CABLE
Stock Code:
25MM 1C XLPE
Description

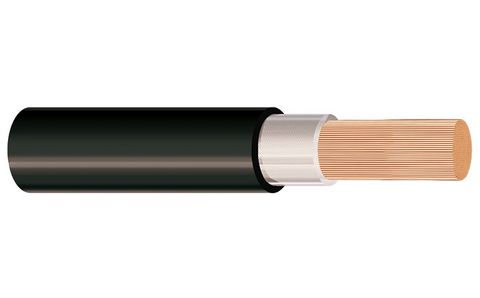

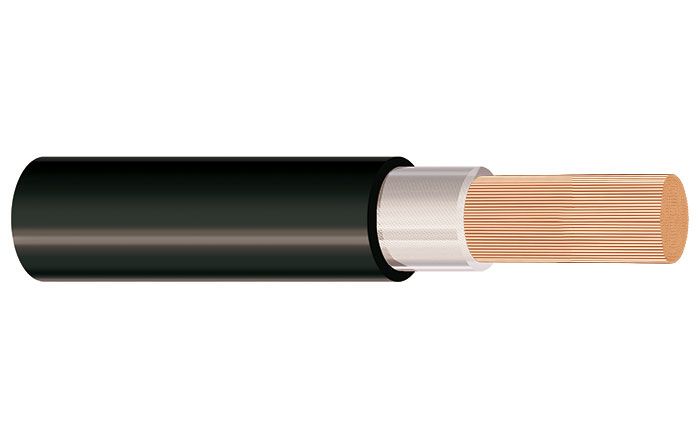

Single core CU conductor featuring black PVC sheath and XLPE insulation.
Suitable for industrial , commercial and domestic application.
Recommended for distribution systems.
Includes a stranded circular copper conductor.
Conductor material: Copper
Outer sheath: PVC
Insulation: XLPE
Cores x Area (mm2): 1 x 25
Rated Voltage Uo/U: 0.6 / 1.2 KV
Max. conductor temperature in service: 90°C
Nom Diameter: 10.9 mm
Outer sheath: PVC
Insulation: XLPE
Cores x Area (mm2): 1 x 25
Rated Voltage Uo/U: 0.6 / 1.2 KV
Max. conductor temperature in service: 90°C
Nom Diameter: 10.9 mm
