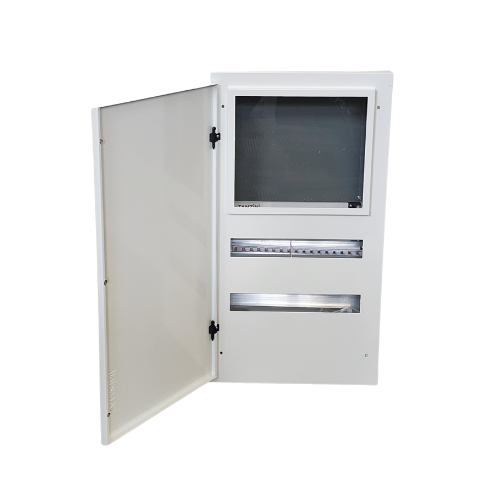

TANZINI COMBINATION METAL BOARD 34WAY128MM DEEP
Stock Code:
SWB34METER
Description
TESTED AND APPROVED IN NEW ZEALAND.
NEW DESIGN HIGH QUALITY TANZINI COMBINATION BOARD.
ADVANTAGE:
-MAXIMUM CAN FIT 34 PCS OF MCBs
-EXTRA DEEP SPACE ON METER INSTALLATION AREA.
-EXTRA SPACE TO ACCESS BETWEEN NEUTRAL AND EARTH BAR
-EASY ASCESS ON TOP AND BOTTOM DESIGN
-POLES FILLERS, PROTECTIVE RUBBER AND PVC ROD TOOTH INCLUDED
SPECIFICATION:
IT CAN FIT MAXIMUM 34 PCS OF MCBs
DIMENSION:
BODY: 710MM X 360MM X 128MM
WITH FRAME AND DOOR: 750MM X 403MM X 144MM
TWO ROWS (2X17Way)
Rating: InA = 125A
IP: IP2XC
Flush Mount
Comply with AS/NZS 61439.1:2016 and AS/NZS 61439.3:2016
IT CAN FIT MAXIMUM 34 PCS OF MCBs
DIMENSION:
BODY: 710MM X 360MM X 128MM
WITH FRAME AND DOOR: 750MM X 403MM X 144MM
TWO ROWS (2X17Way)
Rating: InA = 125A
IP: IP2XC
Flush Mount
Comply with AS/NZS 61439.1:2016 and AS/NZS 61439.3:2016
