10MM 2C+E TPS CABLE
Stock Code:
10MM2C+E
Description

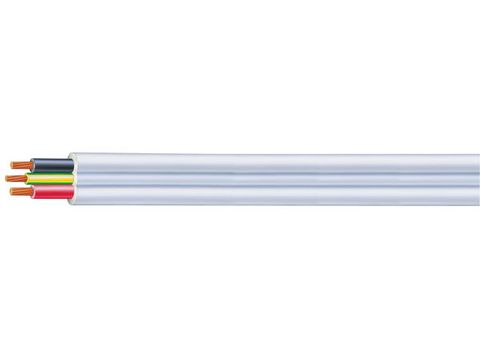

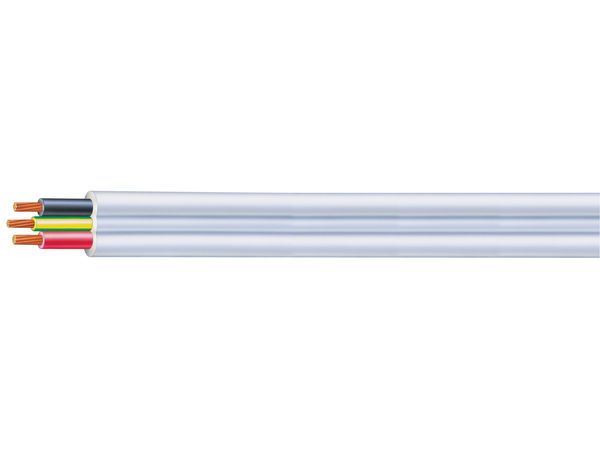

Two core plus earth flat cable with 450/750V V-90 insulation.
PVC sheathed complies with AS/NZS 5000.2 standards which was manufactured in accordance with PVC best practice guidelines.
It is suitable for fixed wiring installation for power circuits in domestic, commercial and industrial situations.
Bulky:
This product will require shipping to be quoted on - you may need confirmation from your closest branch.
Conductor material: Copper
Outer sheath: PVC
Insulation: PVC
Cores x Area (mm2): 2 x 10.0 + 4 E
Rated Voltage Uo/U: 450/750 V
Max. conductor temperature in service: 75°C
Earth selection cross: 4.0 mm²
Nom Diameter: 8.5 X 20.4 mm
Outer sheath: PVC
Insulation: PVC
Cores x Area (mm2): 2 x 10.0 + 4 E
Rated Voltage Uo/U: 450/750 V
Max. conductor temperature in service: 75°C
Earth selection cross: 4.0 mm²
Nom Diameter: 8.5 X 20.4 mm
