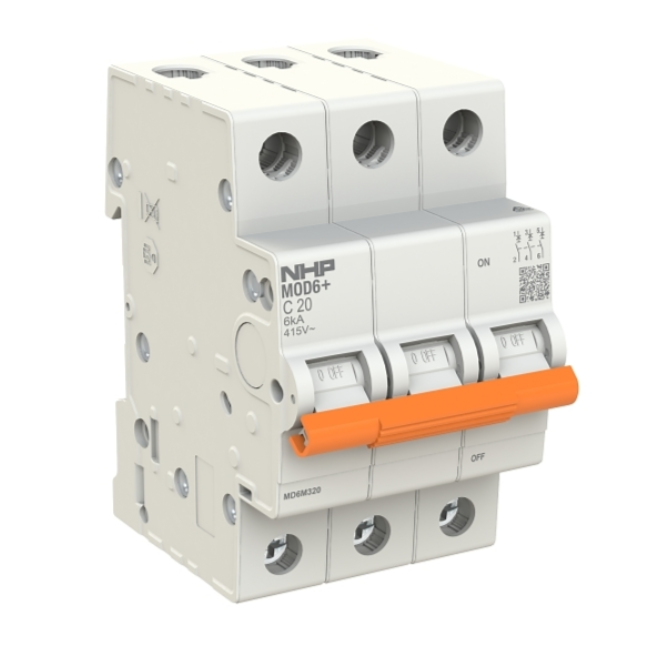

NHP 25A MCB 6KA 3 Pole - C curve MOD6+
Stock Code:
MD6M325
Description
NHP’s MOD6+ Miniature Circuit Breakers (MCBs) offer cost effective solutions while providing core electrical protection, designed to detect and trip on overload and short circuit currents. These MCBs are available with a 6kA short circuit rating, with current ratings from 6-63A in 1P, 2P or 3P in C trip curve and 80-125A in 1P & 3P in C trip curve.
Rated current 25 A
Number of poles (total) 3
Trip curve C
Rated voltage 415 V
Frequency 50-60 Hz
Voltage type AC
Service voltage Ub, AC 12 V
Rated short-circuit breaking capacity Icn
according to AS/NZS 60898 at 230 VAC 6 kA
Rated short-circuit breaking capacity Icn
according to AS/NZS 60898 at 400 VAC 6 kA
Max. rated operation voltage Ue 440 V
Rated insulation voltage Ui 440 V
Rated impulse withstand voltage Uimp 4 kV
Number of poles (total) 3
Trip curve C
Rated voltage 415 V
Frequency 50-60 Hz
Voltage type AC
Service voltage Ub, AC 12 V
Rated short-circuit breaking capacity Icn
according to AS/NZS 60898 at 230 VAC 6 kA
Rated short-circuit breaking capacity Icn
according to AS/NZS 60898 at 400 VAC 6 kA
Max. rated operation voltage Ue 440 V
Rated insulation voltage Ui 440 V
Rated impulse withstand voltage Uimp 4 kV
