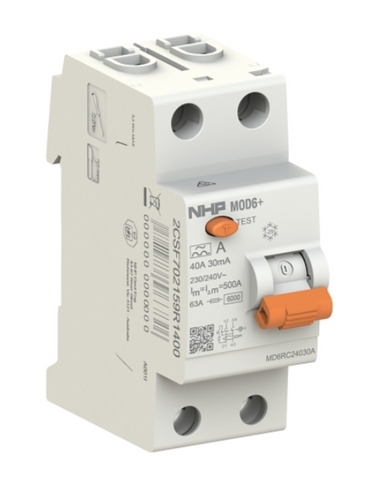

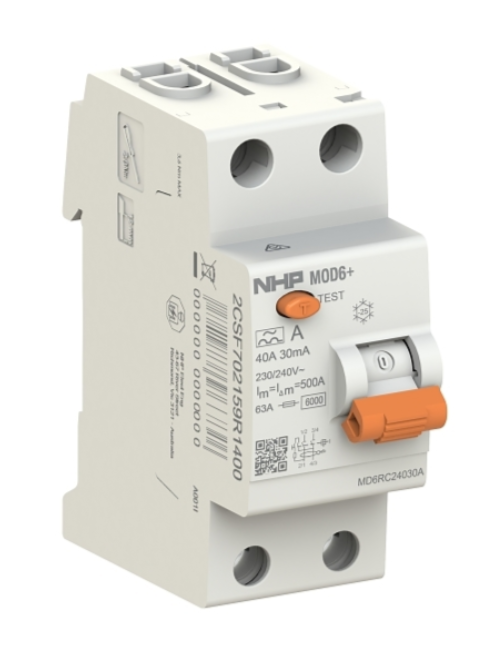

NHP MOD6+ RCD 2Pole 63A 30mA
Stock Code:
MD6RC26330A
Description
NHP MOD6+ Residual Current Devices (RCDs) offer a 6kA rating with a proven history in domestic and commercial applications. The MOD6+ RCD range offers many solutions for both 1 phase in 10mA and 30mA sensitivities as well as 3 phase in 30mA sensitivities.
Number of poles 2
Voltage type AC
Frequency 50/60 Hz
Rated current 63 A
Leakage current type A
Rated leakage current 30 mA
Concurrently switching neutral conductor Yes
Min. service voltage 110 V
Max. rated operation voltage Ue AC 456 V
Rated insulation voltage Ui 500 V
Rated impulse withstand voltage Uimp 4 kV
Rated fault current 6000 A
Selective protection No
Short-time delayed tripping No
Electrical life at Un, In (service cycles) 10000 cycles
Rated voltage 240 V
Surge current capacity 0.25 kA
Voltage type AC
Frequency 50/60 Hz
Rated current 63 A
Leakage current type A
Rated leakage current 30 mA
Concurrently switching neutral conductor Yes
Min. service voltage 110 V
Max. rated operation voltage Ue AC 456 V
Rated insulation voltage Ui 500 V
Rated impulse withstand voltage Uimp 4 kV
Rated fault current 6000 A
Selective protection No
Short-time delayed tripping No
Electrical life at Un, In (service cycles) 10000 cycles
Rated voltage 240 V
Surge current capacity 0.25 kA
