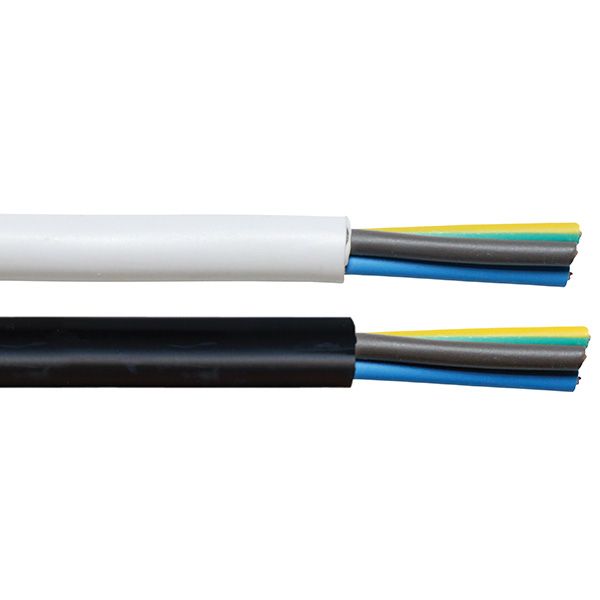

Flexible Cable 2.5MM 2C+E 250/440V WHITE
Description
APPLICATIONS:
Lighting Used for interconnection for various forms of lighting including fluorescent fittings, high bays/low bays, floodlights and reading lamps.
Appliance Suitable for use as interconnection leads for appliances.
Extension Leads Suitable for domestic power leads (not recommended for industrial or harsh environments).
PRODUCT FEATURES:
Metre marked
Extremely fine stranded copper conductor
UV stabilised
Flame retardant
Heat, oil and chemical resistant (refer to Chemical Rating Chart)
CONSTRUCTION:
Conductor Annealed plain copper stranded high flexibility (Class 5).
Insulation SPVC V-90.
Sheath SPVC.
CHARACTERISTICS:
Maximum Conductor Temperature 90degree (Current ratings are based on 30degree air temp. See technical section for de-rating factors).
Rated Voltage Uo/U 250/440V. Max AC Operating Voltage Uo 318V.
Minimum Bending Radius Fixed 7.5 x cable diameter / Flexing 15 x cable diameter.
Sheath Colour Black, White
-Metre marked
-Extremely fine stranded copper conductor
-UV stabilised
-Flame retardant
-Heat, oil and chemical resistant
No. of Cores x Size (mm): 3 x 2.5
Approx. Stranding (No. of wires x mm): 47/0.26
Approx. Overall Diameter (mm): 10.4
