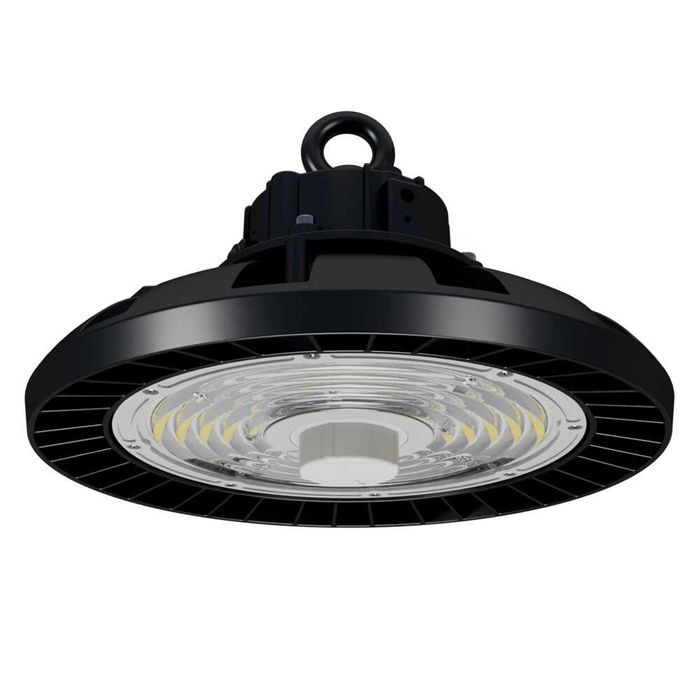

LED High Bay 3/4/5K 100/150/200W selectable
Stock Code:
SHB23MP200TC
Design Specifications
Integral selectable power 100 / 150 or 200 watts
Integral selectable CCT 3000, 4000 or 5000K
Robust, low profile die-cast aluminium IP65/IK08 body profile.
High efficiency LED optics, with an impressive > 140lm/W optical performance at 150W/4000K, CRI > 80, 90 degree beam distribution, polycarbonate lens
Integral 1-10V dimmable LED driver, complete with flex and plug for easy installation, optional inline DALI (1) addressable signal converter, optional plug and play corridorSTANDBY sensor
Power/lumen settings at;
3000K : 100W/13000lm, 150W/18000lm, 200W/22000lm,
4000K : 100W/14500lm, 150W/21000lm, 200W/26000lm,
5000K : 100W/14000lm, 150W/19500lm, 200W/24000lm.
