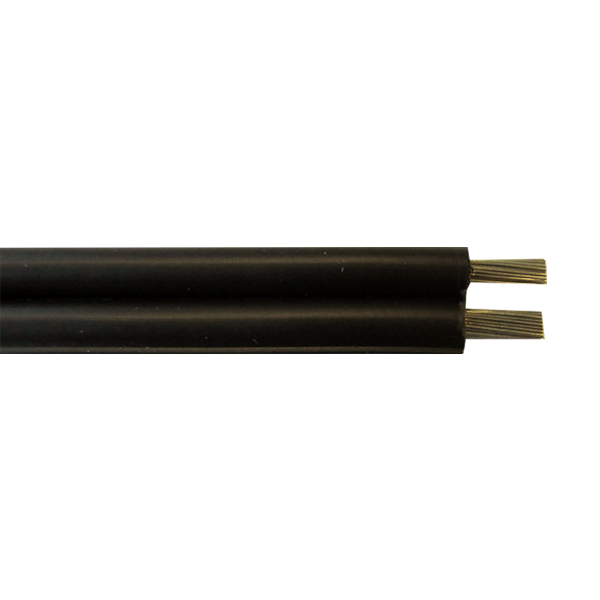

1.0MM 2Core GARDEN CABLE 100M/ROLL
Stock Code:
GLT02/1.0BK100
Description
PRODUCT FEATURES:
Raised rib on one core for polarity identification +/-
Tinned fine stranded copper conductor
UV stabilised
Water resistant
Heat, oil and chemical resistant (See Chemical Rating Chart)
CONSTRUCTION:
Conductor Annealed tinned copper stranded high ?exibility (Class 5)
Insulation Special SPVC V-90HT.
CHARACTERISTICS:
Operating Temperature Range Fixed -20°C to 90°C
Maximum Conductor Temperature 90°C (Current ratings are based on 30°C air temp. See technical section for de-rating factors).
Rated Voltage 50 VAC / 120 VDC ELV (Not for mains connection)
Minimum Bending Radius Fixed 10 x cable diameter / Flexing 15 x cable diameter.
Insulation Colour Black. (Raised rib on one core for polarity identification +/-)
Size: 2 x 1.0mm²
Approx Stranding: 32/0.20
Approx Overall Diameter: 2.6H x 5.7W
Approx Weight (Kg/Km): 38
Max DC Conductor Resistance @ 20°C O/km: 20
1 Phase Volt Drop @50Hz/Max Conductor Temp (Mv/AM) 75°C: 47.5
