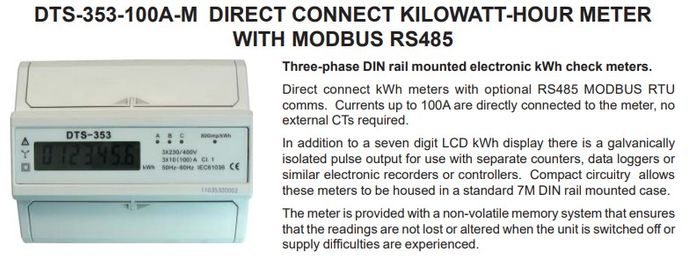

KILOWATT HOUR METERS 100A 3 PHASE CheckMeter
Stock Code:
DTS-353-100A-M
Specifications
Input AC current and voltage, 3 phase 4 wire, balanced or unbalanced load
Current : 3 x 5 (100A)
: Terminals for 35mm2 cable, accepts up to 50mm2
Voltage : 3 x 230V Ph-N
Frequency : 50Hz
Power consumption : <1 Watt, 7VA
Outputs : Integral 7 digit LCD display with 0.1kWh resolution
: S0 opto coupler isolated pulse output, 800 imp/kWh
: Pulse width 80ms
: Opto coupler isolated RS485 standard on twisted pair cable
Protocol : MODBUS RTU slave with node addressing 1 to 246
Data register : 24 bits 9999999 max reading on register 40001 (long integer)
Data format : 9600 Baud, no parity, 1 stop bit
Temperature Operating : -10¡ãC to +45¡ãC
Standards : IEC 62052-11, DIN EN 50022, DIN43880
Accuracy : Class 1
Input AC current and voltage, 3 phase 4 wire, balanced or unbalanced load
Current : 3 x 5 (100A)
: Terminals for 35mm2 cable, accepts up to 50mm2
Voltage : 3 x 230V Ph-N
Frequency : 50Hz
Power consumption : <1 Watt, 7VA
Outputs : Integral 7 digit LCD display with 0.1kWh resolution
: S0 opto coupler isolated pulse output, 800 imp/kWh
: Pulse width 80ms
: Opto coupler isolated RS485 standard on twisted pair cable
Protocol : MODBUS RTU slave with node addressing 1 to 246
Data register : 24 bits 9999999 max reading on register 40001 (long integer)
Data format : 9600 Baud, no parity, 1 stop bit
Temperature Operating : -10¡ãC to +45¡ãC
Standards : IEC 62052-11, DIN EN 50022, DIN43880
Accuracy : Class 1
