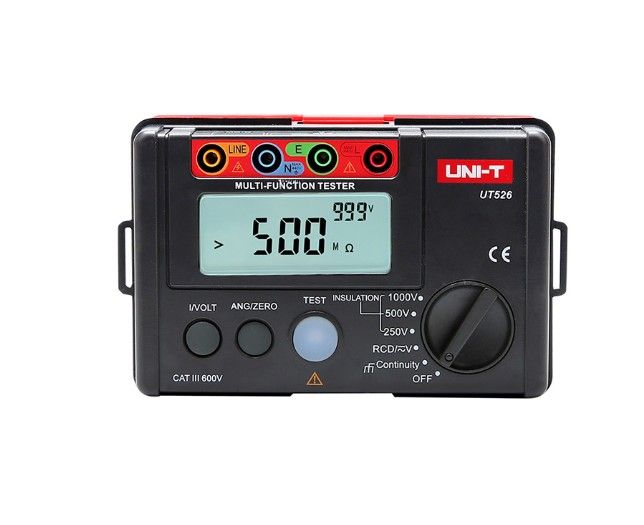

UNI-T Multifunction Electrical Meter Insulation / RCD/ Continuity / Voltage
Stock Code:
UT526
Description
The UNI-T UT526 is a professional multifunction electrical installation tester combining insulation resistance, RCD testing, continuity, and AC/DC voltage measurement in one compact instrument. Used by electricians and inspectors to verify that installations comply with AS/NZS 3000 and IEC standards.
Key Features:
" Insulation test voltages: 250V / 500V / 1000V
" Insulation resistance: 0.05 - 500M-ohm range
" RCD testing: 10mA, 30mA, 100mA & 300mA
" Low resistance continuity: 0-2000ohm
" AC/DC voltage measurement: 0-440V
Used For:
Compliance testing for new and existing electrical installations, insulation integrity checks, RCD operation verification, and continuity testing.
Key Specifications:
Insulation Test V: 250V / 500V / 1000V
Insulation Range: 0.05 - 500M-ohm
RCD Current: 10/30/100/300mA
Voltage Range: 0-440V AC/DC
Safety: CAT III 600V
Weight: 380g
