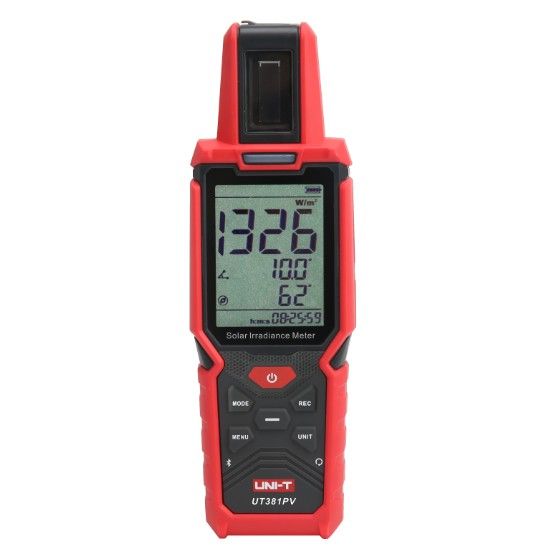

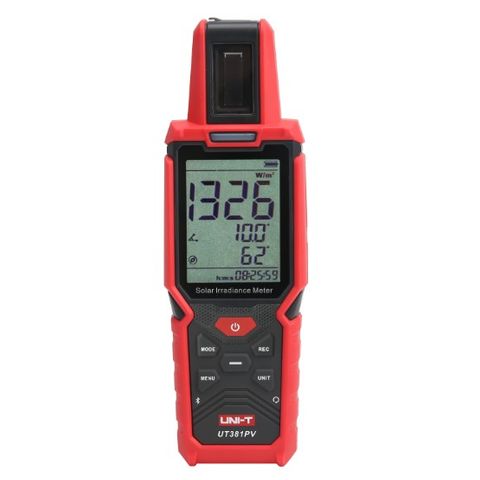

Solar Irradiance Meter UNI-T
Stock Code:
UT381PV
Description
The UNI-T UT381PV is purpose-built for photovoltaic system installation and maintenance. It measures solar irradiance (0-1400 W/m²), dual-channel temperature, panel inclination (±90°), and azimuth direction (0-360°). IP65 rated with Bluetooth to the iENV app, 12,800 data storage points, and up to 95 hours battery life.
Key Features:
" Solar irradiance: 0-1400 W/m² measurement range
" Dual-channel temperature: ambient + panel surface
" Built-in inclination (±90°) and azimuth (0-360°)
" IP65 rated, UV-resistant housing, 2m dropproof
" Bluetooth to iENV mobile app (100m range)
Used For:
Solar panel installation alignment, performance verification, photovoltaic station maintenance, and laboratory testing of PV modules.
Key Specifications:
Irradiance: 0-1400 W/m²
Temperature: -40°C to 120°C
Inclination: ±90°
Azimuth: 0-360°
IP Rating: IP65 / 2m drop
Battery Life: ~95 hours
" Solar irradiance: 0-1400 W/m² measurement range
" Dual-channel temperature: ambient + panel surface
" Built-in inclination (±90°) and azimuth (0-360°)
" IP65 rated, UV-resistant housing, 2m dropproof
" Bluetooth to iENV mobile app (100m range)
Used For:
Solar panel installation alignment, performance verification, photovoltaic station maintenance, and laboratory testing of PV modules.
Key Specifications:
Irradiance: 0-1400 W/m²
Temperature: -40°C to 120°C
Inclination: ±90°
Azimuth: 0-360°
IP Rating: IP65 / 2m drop
Battery Life: ~95 hours
