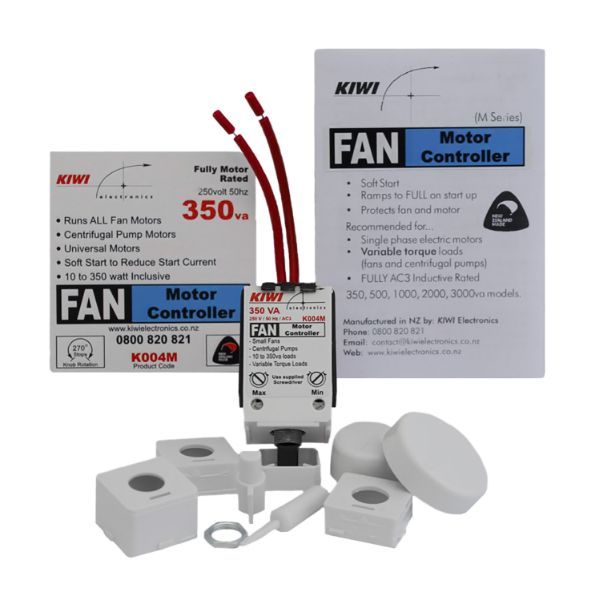

KIWI Motor Controller 350va
Stock Code:
K004M
Product Specifications
• Input voltage 250volt
• Output voltage 0% to 99% of input
• Frequency 50/60hz
• Minimum current 5watts - K004M, K005M
100watts - K010M, K020M,
K030M
• Load rating AC3 Inductive
• Switching type Leading Edge
• Max per flush box 3 x K004M
3 x K005M, 2 x K010M
1 x K020M, 1 x K030M
(Ensure mounting method promotes air flow.)
• Ambient temp 25°C
• Thermal Fuse 16amp/110°C max
• Thermal Protection Activated above 70°C
• Knob Rotation 270° with memory
• EMC/RFI approval AS/NZS 4051
• Designed to AS3100
Note: Specifications may change without notice.
