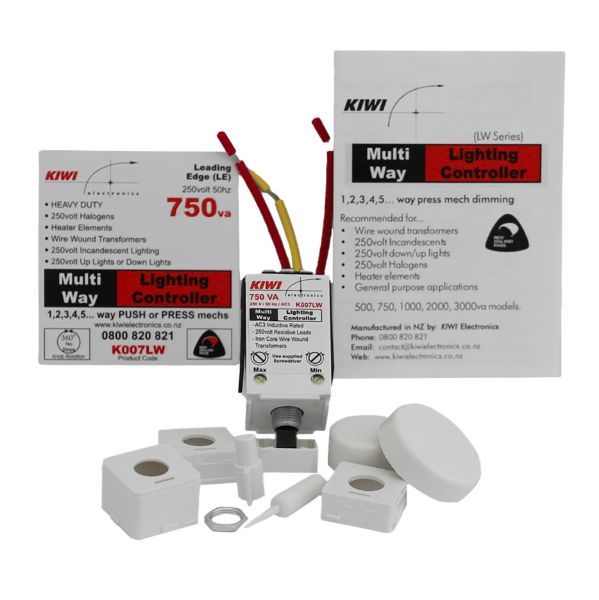

KIWI MultiWay Controller 750va
Stock Code:
K007LW
Product Specifications
• Input voltage 250volt
• Output voltage 0% to 98% of input
• Frequency 50/60hz
• Load rating AC3 Inductive
AC1 Resistive
• Switching type Leading Edge
• Max per flush box 3 x K005LW or K007LW, 2 x K010LW
1 x K020LW, 1 x K030LW
(Ensure mounting method promotes air flow.)
• Ambient temp 25°C
• Thermal Fuse 16amp/110°C max
• Thermal Protection Activated above 70°C
• Knob Rotation 360° no memory of last
setting if isolated
• EMC/RFI approval AS/NZS 4051
• Designed to AS3100
Note: Specifications may change without notice.
