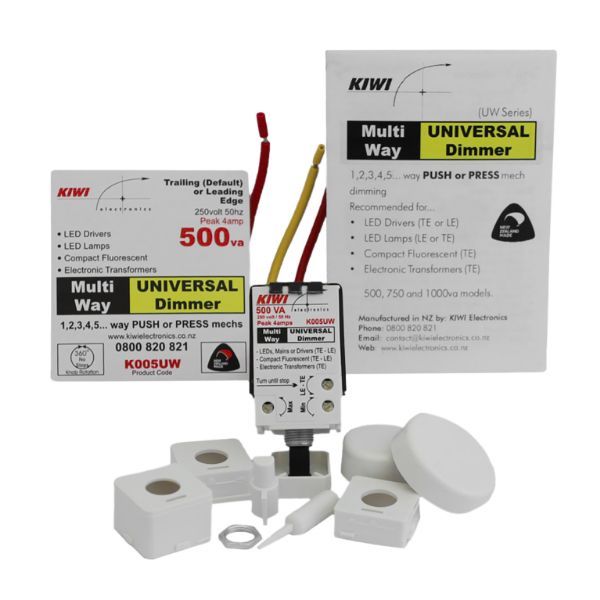

KIWI MultiWay UNIVERSAL 500va
Stock Code:
K005UW
Product Specifications
• Input voltage 240volt
• Output voltage 0% to 97% of input
• Frequency 50/60hz
• Peak current K004UW - 440VA - 4A
K005UW - 500VA - 4A
K007UW - 750VA - 6A
K010UW - 1000VA - 8A
• Load rating Inductive (LE)
Capacitive (TE)
Trailing Edge - Leading Edge
• Switching type Trailing Edge or
Leading Edge (Selectable)
Automatic on model K004UW
• Max per flush box 3 x K004UW, 3 x K005UW
2 x K007UW
1 x K010UW
Note: Ensure mounting method promotes air flow.
• Ambient temp 25°C
• Thermal Fuse 16amp/141°C max
• Knob Rotation 270° with memory
• Approval AS/NZS 60669.2.1
Note: Specifications may change without notice.
