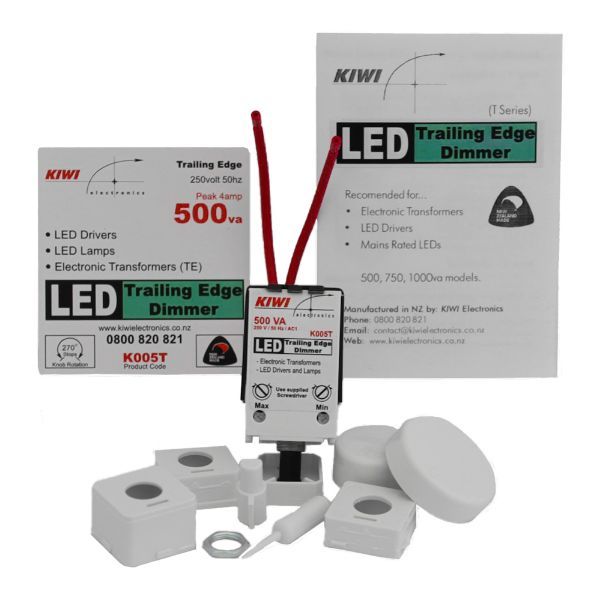

KIWI Trailing Edge Dimmer 500va
Stock Code:
K005T
Product Specifications
• Input voltage 250volt
• Output voltage 0% to 98% of input
• Frequency 50/60hz
• Load rating Capacitive (TE)
• Switching type Trailing Edge
• Max per flush box 3 x K005T, 3 x K007T
1 x K010T
• Peak current K005T - 4A
K007T - 6A
K010T - 8A
(Ensure mounting method promotes air flow.)
• Ambient temp 25°C
• Thermal Fuse 16amp/110°C max
• Thermal Protection Activated above 70°C
• Knob Rotation 270° with memory
• EMC/RFI approval AS/NZS 4051
• Designed to AS3100
Note: Specifications may change without notice.
• Input voltage 250volt
• Output voltage 0% to 98% of input
• Frequency 50/60hz
• Load rating Capacitive (TE)
• Switching type Trailing Edge
• Max per flush box 3 x K005T, 3 x K007T
1 x K010T
• Peak current K005T - 4A
K007T - 6A
K010T - 8A
(Ensure mounting method promotes air flow.)
• Ambient temp 25°C
• Thermal Fuse 16amp/110°C max
• Thermal Protection Activated above 70°C
• Knob Rotation 270° with memory
• EMC/RFI approval AS/NZS 4051
• Designed to AS3100
Note: Specifications may change without notice.
