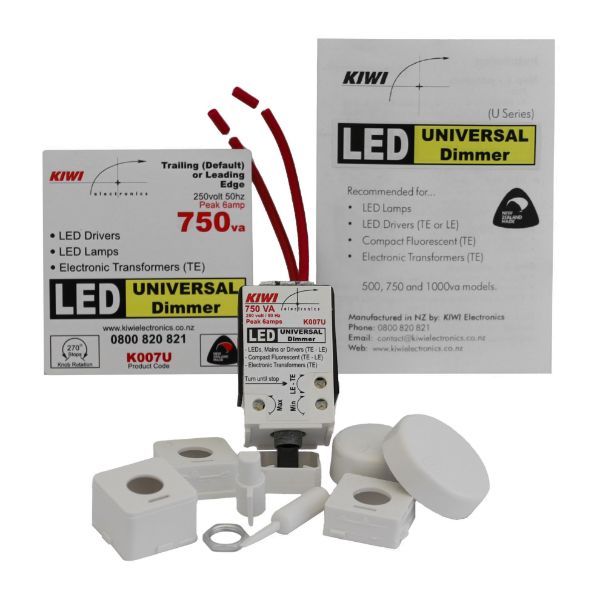

KIWI UNIVERSAL Dimmer 750va
Stock Code:
K007U
Product Specifications
• Input voltage 250volt
• Output voltage 0% to 99% of input
• Frequency 50/60hz
• Peak current K005U - 4A
K007U - 6A
K010U - 8A
• Load rating Inductive (LE)
Capacitive (TE)
• Switching type Trailing Edge or
Leading Edge (Selectable)
• Max per flush box 3 x K005U
2 x K007U
1 x K010U
(Ensure mounting method promotes air flow.)
• Ambient temp 25°C
• Thermal Fuse 16amp/110°C max
• Thermal Protection Activated above 70°C
• Knob Rotation 270° with memory
• EMC/RFI approval AS/NZS 4051
• Designed to AS3100
Note: Specifications may change without notice.
