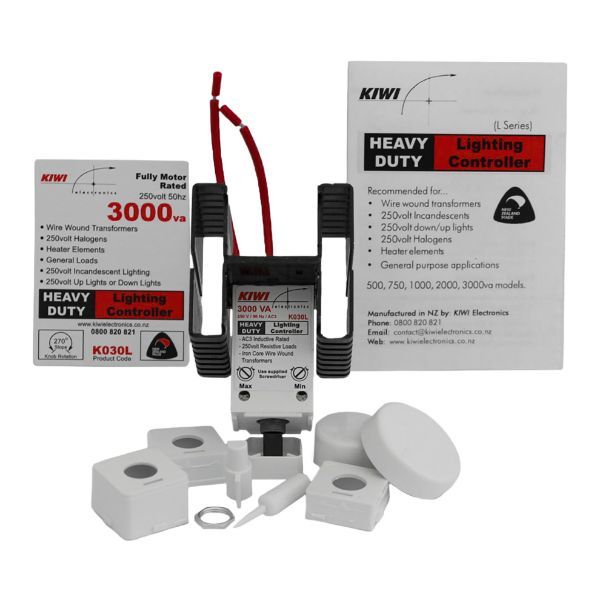

KIWI Lighting Controller 3000va
Stock Code:
K030L
Product Specifications
• Input voltage 250volt
• Output voltage 0% to 98% of input
• Frequency 50/60hz
• Load rating AC3 Inductive & Resistive
• Switching type Leading Edge
• Max per flush box 3 x K005L or K007L, 2 x K010L
1 x K020L, 1 x K030L
(Ensure mounting method promotes air flow.)
• Ambient temp 25°C
• Thermal Fuse 16amp/110°C max
• Thermal Protection Activated above 70°C
• Knob Rotation 270° with memory
• EMC/RFI approval AS/NZS 4051
• Designed to AS3100
