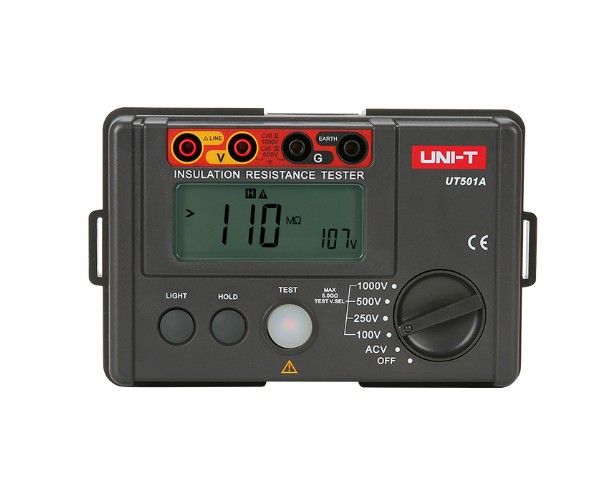

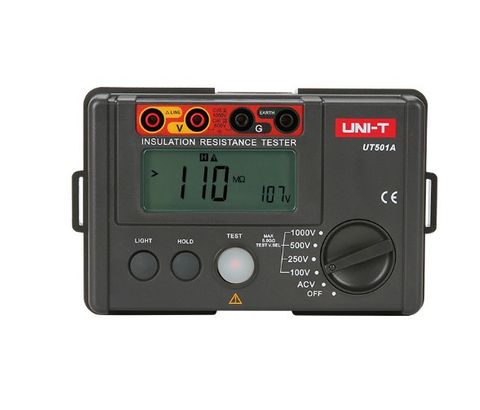

UNI-T Insulation Resistance Tester 1000V
Stock Code:
UT501A
Description
The UNI-T UT501A is a professional insulation resistance tester (megohmmeter) meeting IEC 61557 standards. With selectable test voltages up to 1000V and a measurement range to 5.5Gohm, it is used for preventive maintenance on motors, transformers, power cables, and capacitors to detect degraded insulation before failure.
Key Features:
" Selectable test voltages: 100V / 250V / 500V / 1000V
" Insulation resistance: 0Mohm - 5.5Gohm range
" PI (Polarization Index) and DAR measurement
" Automatic discharge circuit after each test
" Meets IEC 61557 standard, auto power-off
Used For:
Preventive maintenance on electric motors, generators, power cables, transformers, capacitors, and panel boards to prevent insulation failure.
Key Specifications:
Test Voltages: 100 / 250 / 500 / 1000V
Insulation Range: 0 - 5.5G?
Display: 2000 counts
Standards: IEC 61557
Auto Discharge: Yes
Weight: 500g
" Selectable test voltages: 100V / 250V / 500V / 1000V
" Insulation resistance: 0Mohm - 5.5Gohm range
" PI (Polarization Index) and DAR measurement
" Automatic discharge circuit after each test
" Meets IEC 61557 standard, auto power-off
Used For:
Preventive maintenance on electric motors, generators, power cables, transformers, capacitors, and panel boards to prevent insulation failure.
Key Specifications:
Test Voltages: 100 / 250 / 500 / 1000V
Insulation Range: 0 - 5.5G?
Display: 2000 counts
Standards: IEC 61557
Auto Discharge: Yes
Weight: 500g
